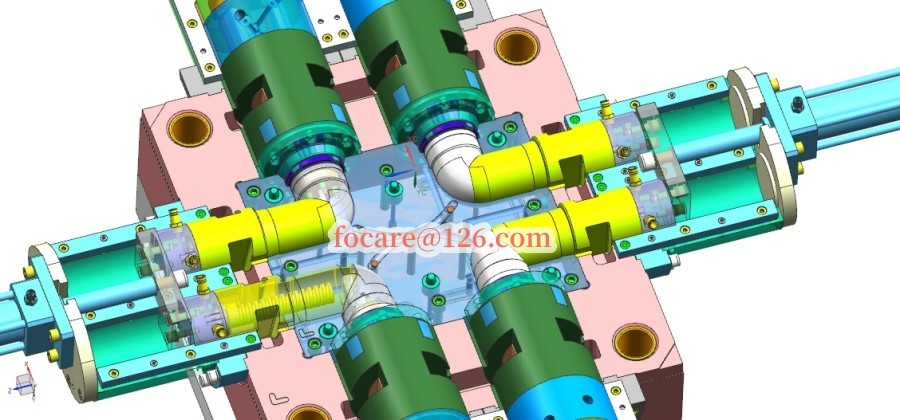

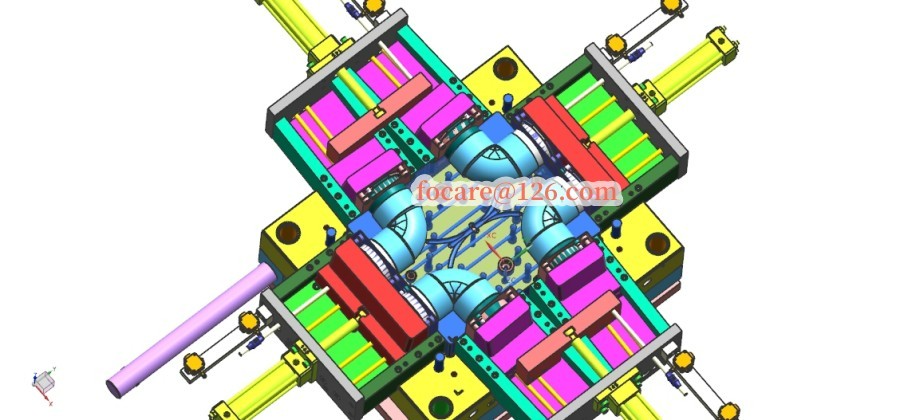

4-Cavity PVC 90degree elbow pipe fitting injection mold

Focare Mould - the professional top quality pipe fitting mold making factory and innovator. Based on more than 10 years pipe fitting mold manufacturing, we have gained a lot of experiences on designing and manufacturing various pipe fitting molds. We collected all the advantages of different customers' requirements and list them into our pipe fitting mold making standard. The standard included design, 2D drawings, machining processing standard, components dimension, mold base and other detail standard...

Our 4-Cavity PVC 90degree elbow pipe fitting injection mold manufacturing standards as following:

-Mold name: PVC 90degree elbow pipe fitting injection mold

-Mold material: Anti-corrosion stainless steel,DIN1.2316

-Mold base: LKM

-Mold Cavity No.,: 4 cavity

-Mold Injection system: Cold Runner

-Mold design: Durable and high efficient pipe fitting mold structure with intensive cooling system.

-Mold Accessories: High quality and long life. The spring is used Datong from Japan, The hydraulic cylinder is JUNFAN from TaiWan, the sealing ring is high quality from Japan

Mold processing: High speed CNC machining.

-Mold testing: Semi-automatic testing for at least 4hours after the mold works stably.
