High precision flower crate mold

Focare Mould is one of the China top plastic crate mold makers in China. We specialized in manufacturing high precision and high quality plastic crate molds, Every year we always meet a few very complex molds , one of the most complex molds is the flower bulb preparation crate mold .

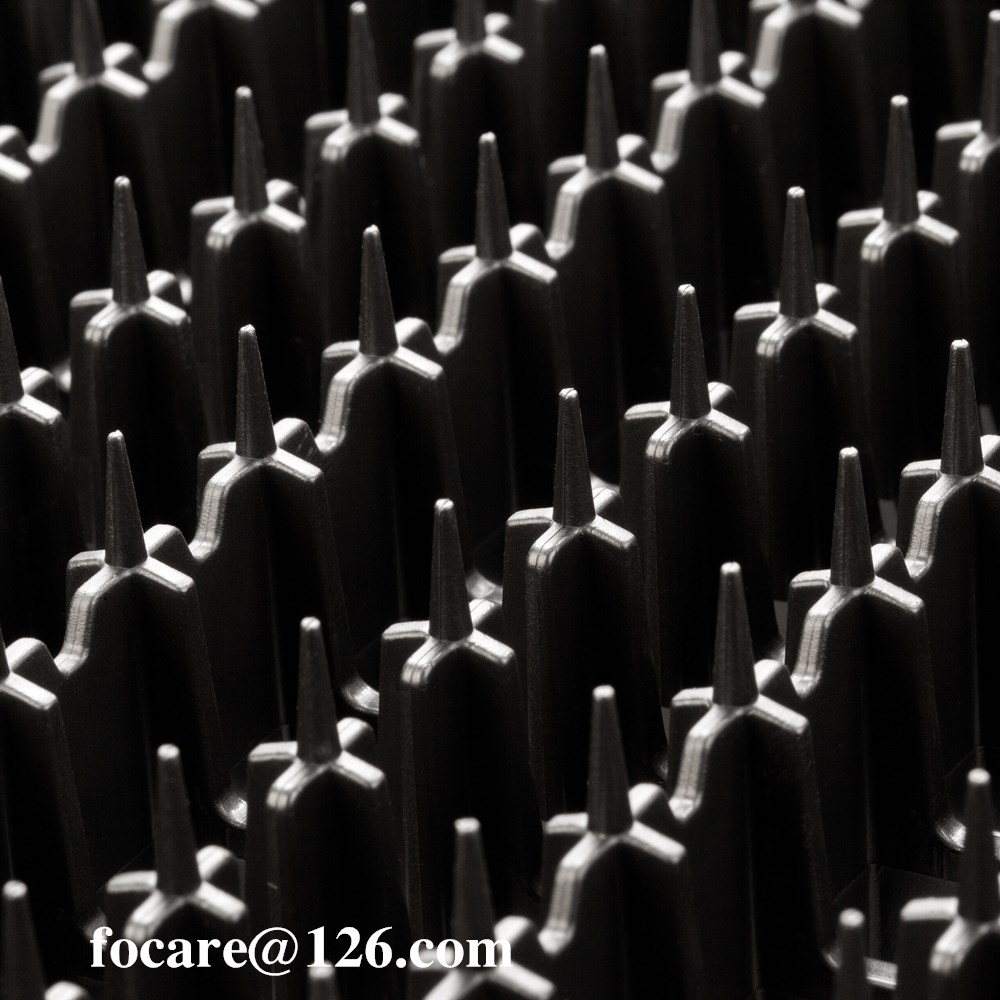

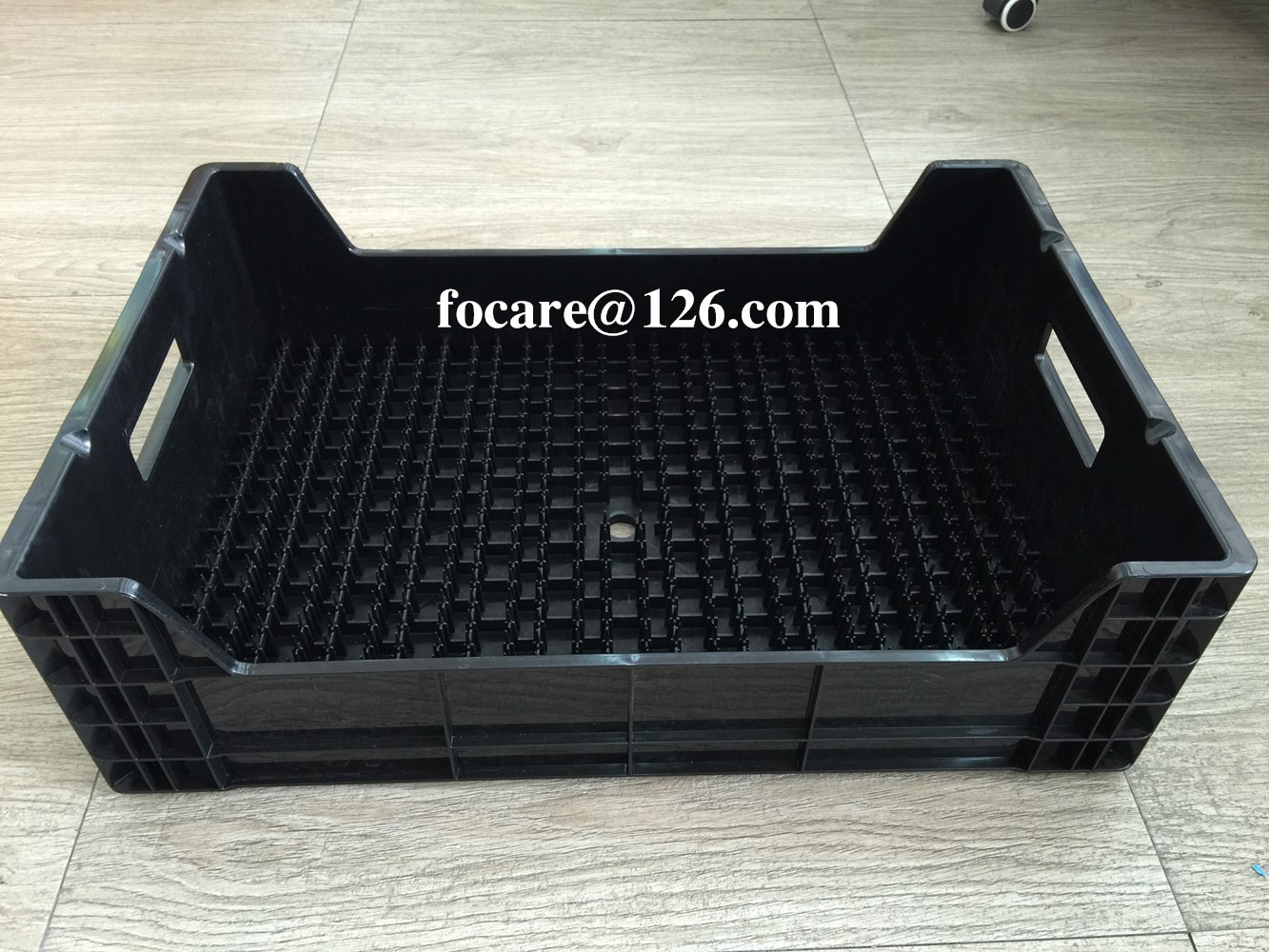

The flower bulb preparation box is different from normal crate ,there are hundreds of needles inside and also many overflow holes under the needles. Therefore, the mold structure is very complicated .And it also has high requirements on mold processing and assembly .

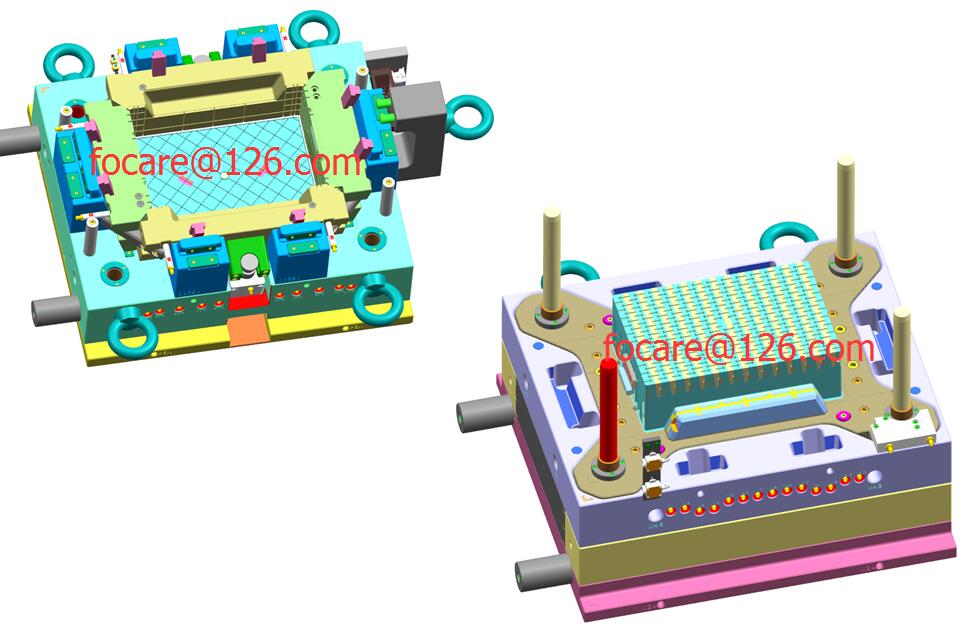

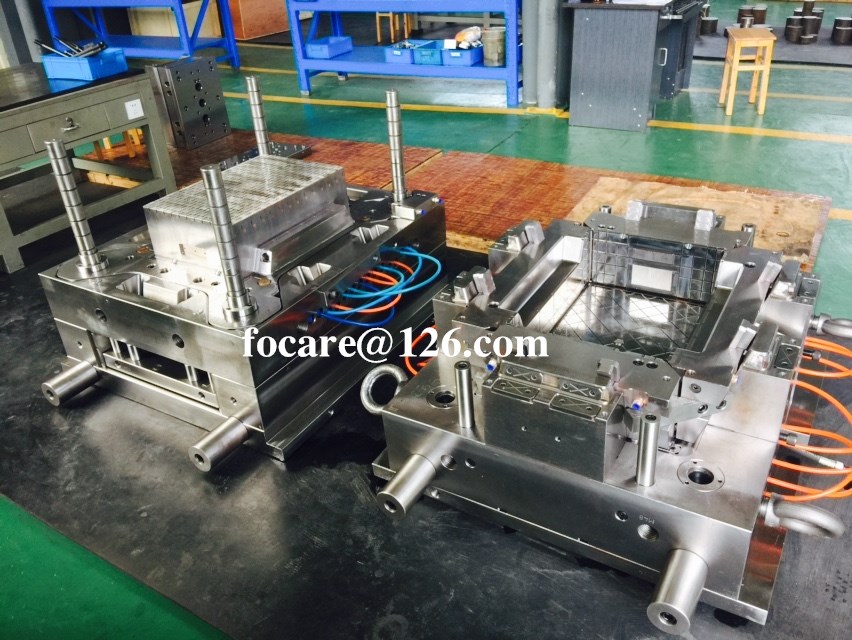

The tulip bulb preparation crate mold structure is complicated, because it has four sliders ,more than 10 sets angle lifters and many insert pins for air venting.

Advantage of The tulip bulb preparation crate mold

1.Mold steel
-we use P20H with 28-32HRC for the mold cavity and core, and S136 with 48-52HRC for the angle lifter .

2.Mold injection system
-we use 6 tips valve gate to ensure the stability of injection molding, and the box appearance is more beauty.

3.Tooling of angle lifter
-We use wire cutting to ensure that the angle lifter will be not deformed .

4.Ejection system .
-Twice ejection design to ensure the production demolding smoothly .

5.Cooling system

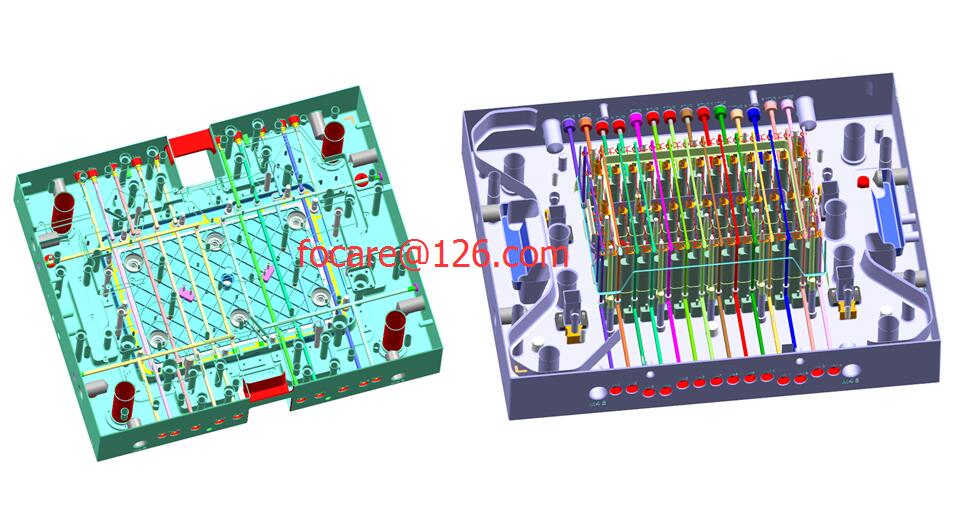

-We created many water channel around angle lifters .

If you want to make molds for other similar high precision tulip bulb preparation box mold or plastic crate mold ,welcome to contact us , we are glad to provide you with best solution of tulip bulb preparation box mold price, bulb preparation crate mold design,processing and injection molding .

Learn more about high precision tulip bulb preparation crate mold
