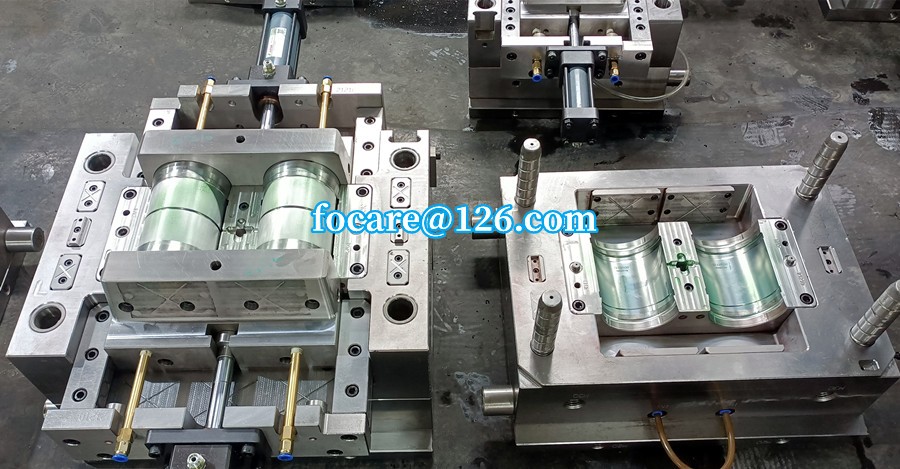

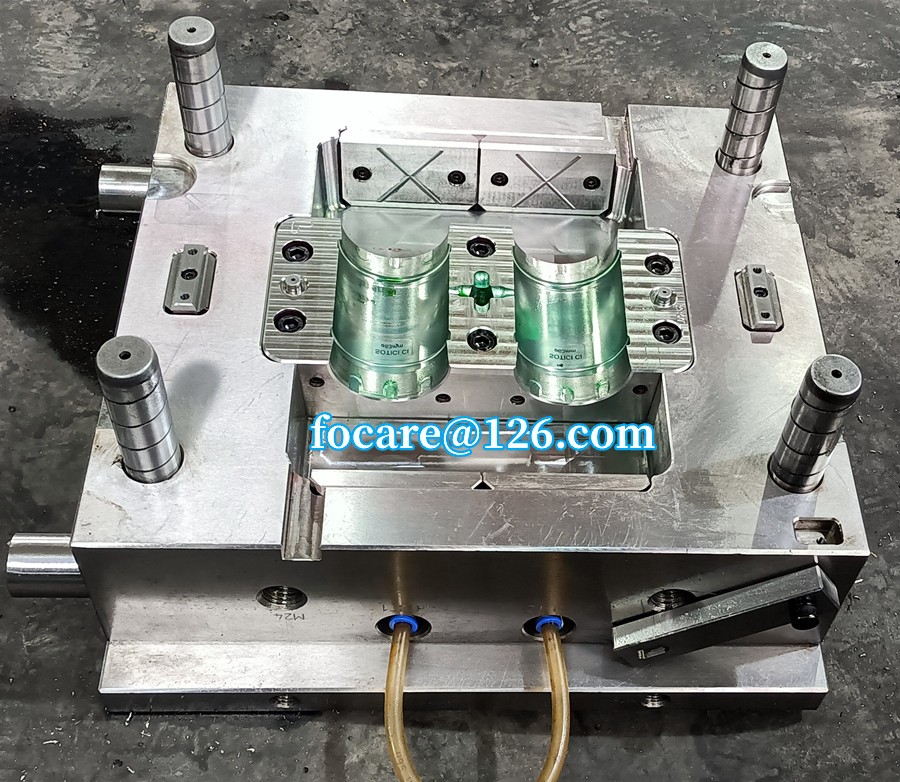

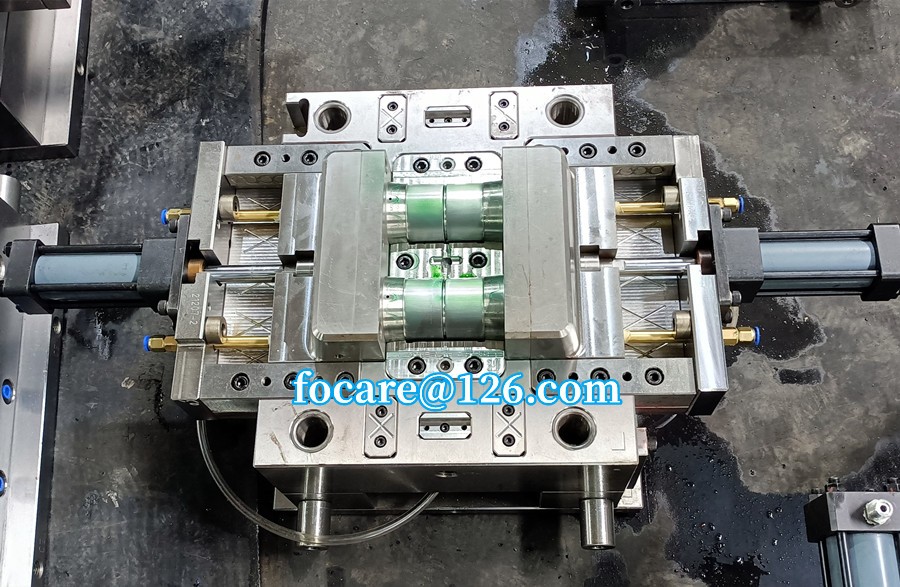

Plastic injection mold for 110mm PVC SWR coupler pipe fitting

Focare Mould-China professional and reliable PVC pipe fitting molds maker, PVC collapsible core pipe fitting molds manufacturer,PP compression pipe fitting molds making factory, PE pipe fitting molds expert, PPR pipe fitting molds supplier. with rich experience, high standard and high requirements can customize molds according to different diameter of PVC SWR coupler pipe fitting.

Our PVC SWR coupler pipe fitting mold manufacturing standards as following:

-Mold name: PVC 110mm socket injection mold

-Mold material: Anti-corrosion stainless steel,DIN1.2316

-Mold base: LKM

-Mold Cavity No.,: Four cavity

-Mold Injection system: Cold Runner

-Mold size: 480 X 570 X 491 mm not including the size of hydraulic cylinder

-Mold weight:886kg

-Mold design: Durable and high efficient pipe fitting mold structure with intensive cooling system.

-Mold Accessories: High quality and long life. The spring is used Datong from Japan, The hydraulic cylinder is JUNFAN from TaiWan, the sealing ring is high quality from Japan

-Mold processing: High speed CNC machining.

-Mold testing: Semi-automatic testing for at least 4hours after the mold works stably.

If you are looking for a quality PVC pipe fitting manufacturer, PVC SWR coupler socket plastic pipe fitting injection mold manufacturer , who can rely on, Focare Mould will be your reliable mold supplier.
