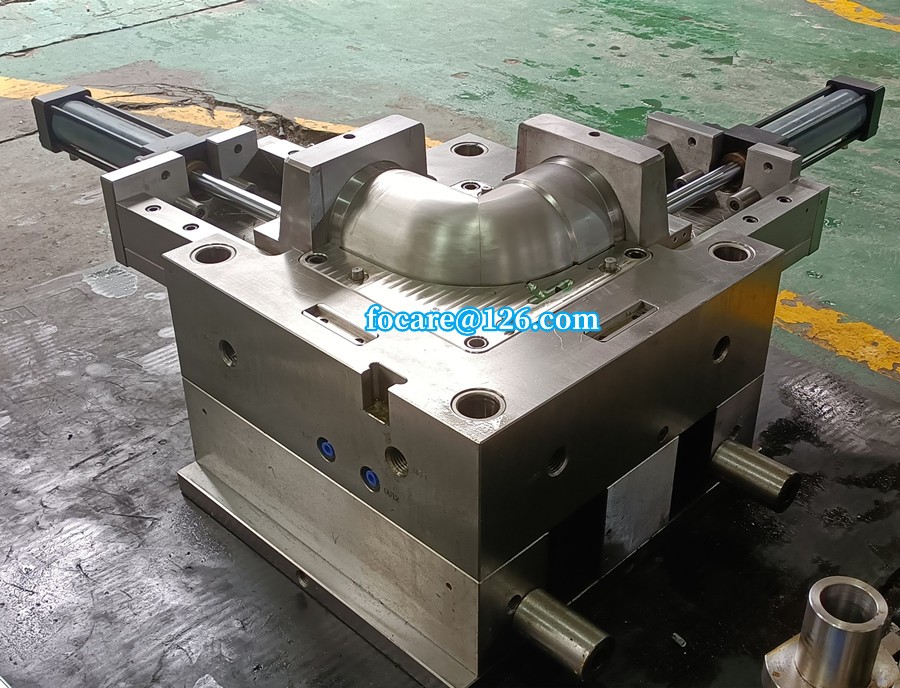

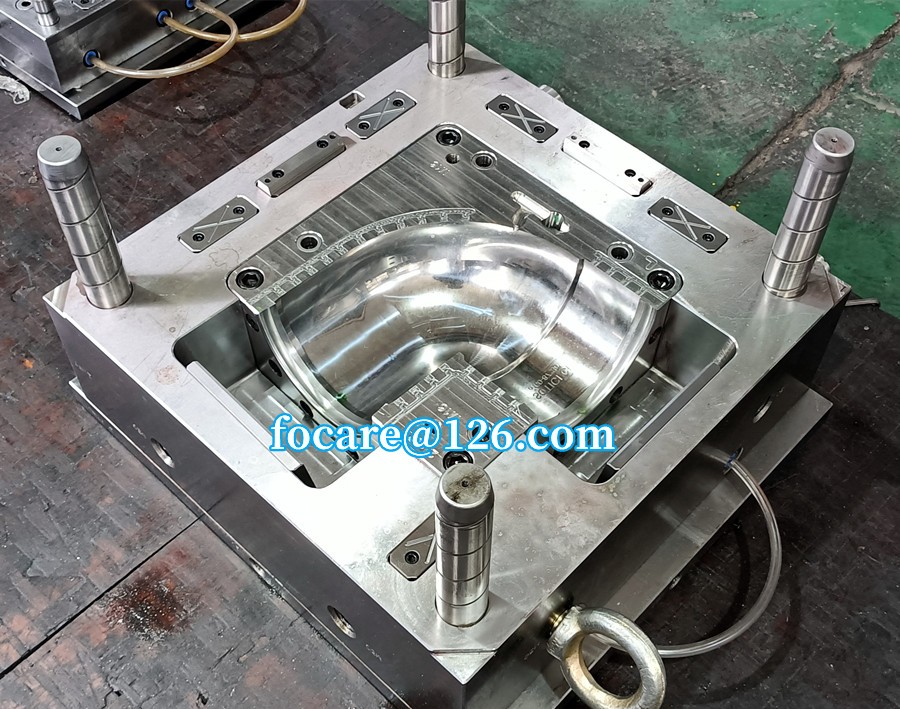

Plastic injection mold for PVC pipe fitting 90degree elbow

Focare Mould-China professional and reliable pipe fitting molds maker, with rich experience, high standard and high requirements in making PVC collapsible core pipe fitting molds, PVC conduit pipe fitting molds, PP compression pipe fitting molds, PE pipe fitting molds, PPR pipe fitting molds, Ball valve molds and so on.we can customize molds according to different diameter of 90degree elbow. Our mold informaction as following:

-Product name: 110mm 90degree PVC elbow injection mold

-Product weight: 770g

-Mold material: Anti-corrosion stainless steel DIN1.2316

-Mold base: Customized LKM

-Mold Cavity No.,: Single

-Mold Injection system: Cold Runner

-Mold Size: 605 X 541 X 566mm not included hydraulic cylinder

-Mold weight:1260kg

-Mold design: Durable and high efficient pipe fitting mold structure with intensive cooling system.

-Mold Accessories: High quality and long life. The spring is used Datong from Japan, The hydraulic cylinder is JUNFAN from TaiWan, the sealing ring is high quality from Japan

-Mold processing: High speed CNC machining.

-Mold testing: Semi-automatic testing for at least 4hours after the mold works stably.

If you are looking for a quality pipe fitting manufacturer who can rely on, Focare Mould will be a good choice.
