Plastic poultry chicken transport box crate injection mold, plastic duck/turkey transport cage mold

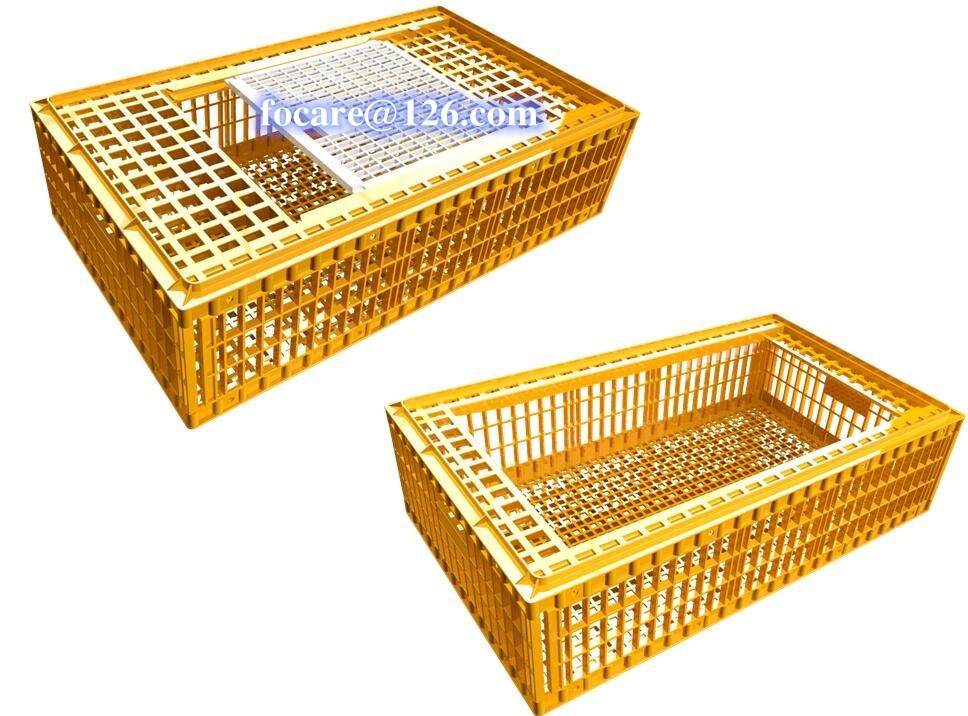

The plastic poultry transport has six parts: bottom, short wall, long wall, upper without cap, upper with cap and cap. These six components can make up two styles of plastic poultry box, one with cap and one without cap. According to our customer’s requirements, we have customized 3 plastic injection molds .

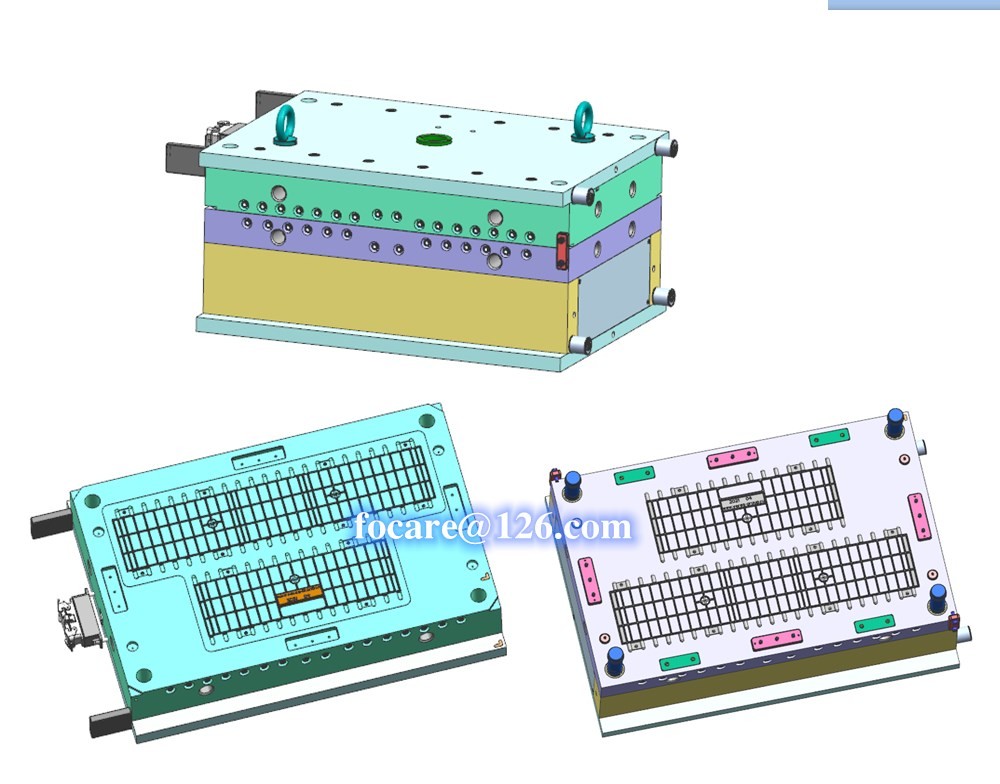

1. Plastic injection mold for long wall+ short wall
We design the long wall and short wall on one mold, which can save the mold cost.
-Mould steel:P20H
-Mould cavity:1+1 family injection mold
-Hot runner mould: 3tips hot runner point gate
-Injection molding machine :850 ton

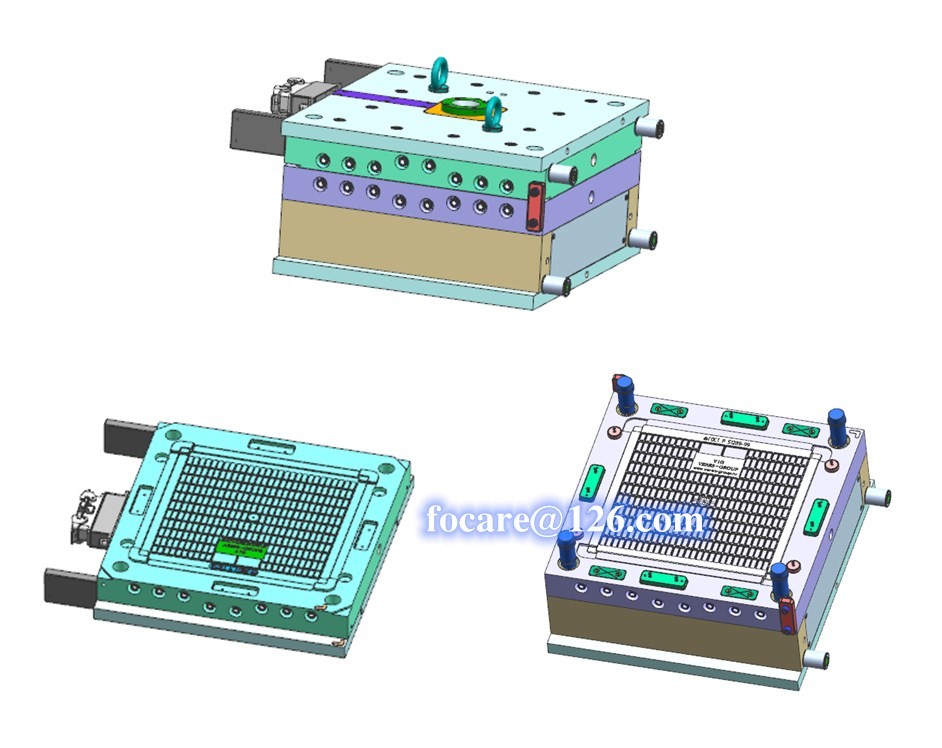

2. Plastic cap mold
-Mould steel:P20H
-Mould cavity:1 cavity
-Hot runner mould: 1tips hot runner point gate
-Injection molding machine :400 ton

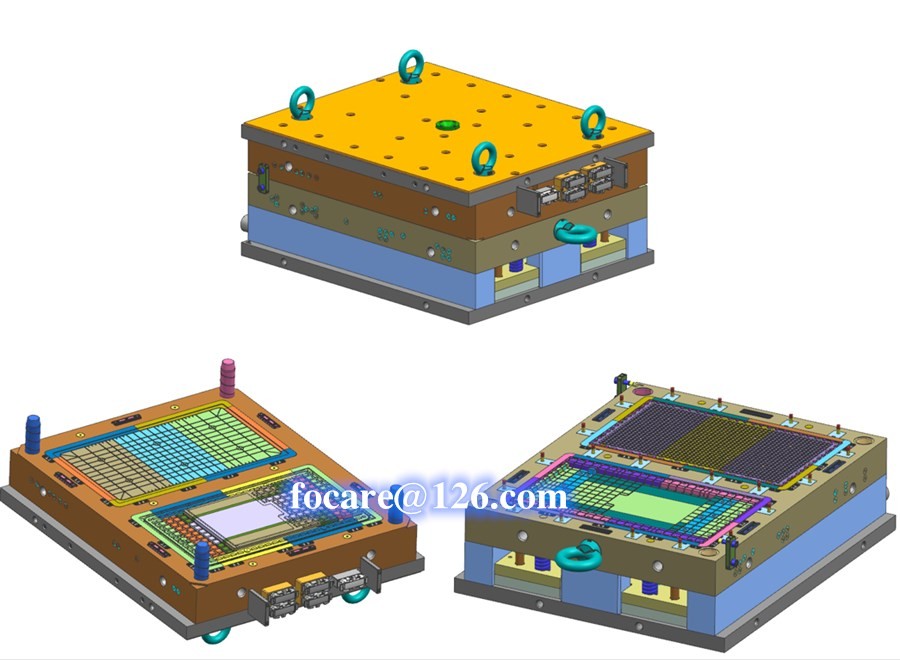

3.Plastic injection mold for bottom+ upper without cap+ upper with cap
This mold can produce three products, bottom, upper with cap and upper without cap, we design the interchangeable insert for upper with cap and without cap. The mold size will be large, if you don’t have such a large machine, you can also design the three product into two molds, one bottom mold, and one mold with interchangeable insert for upper with cap and without cap.
-Mould steel:P20H
-Mould cavity:1+1+interchangeale insert
-Hot runner mould: 12 tips hot runner point gate
-Injection molding machine :1800 ton

Focare Mould as China professional plastic injection mold manufacturer, plastic crate mold maker, we have our own design team, mold making team, mold testing team and professional after sale engineers, we can provide you the best solution, The mold standard is completely customized according to your requirements, we can always make you satisfied.
