Two color airtight container mold with rubber sealed lid

Two color airtight container mold with rubber sealed lid

Category： Food storage container mold
Mould maker:Focare
Two color airtight container mold with rubber sealed lid
Delivery time:60days
Guarantee:12 months
INQUIRY EMAIL

Two color airtight container mold with rubber sealed lid|Two component fresh container mold

Focare Mould-China two color airtight container mold manufacturer,recently we developed a new mould design for airtight container .we made the airtight container and lid on one mould.

However ,this is a very complex mold structure,which is also full of chanllenges for making two color airtight container mold with rubber sealed lid.Finaly we did,This new two color airtight container mold design with rubber sealed lid can help our customers to save alot od costs,such as cost of buying seals,mold costs,labor costs and so on.

The main difficulties are as follows:

1.How to make the lid with rubber attached?
-The only way to make two color lid mold with rubber sealing ring.

2.How to make the rubber at the bottom of container(There is a ring of rubber at the bottom of box to prevent it from slipping)?
-Also need to make two color airtight container mold

3.How to make the different size products on one mould ?
-We used air vent gate to control the injection volume and injection sequence.

Below infomations for two color airtight container mold with rubber sealed lid

Plastic two color airtight container:
-Size:140 X 110 X 81мм
-weight:PP33.3g+rubber0.7g
-Material:PP+TPE

Plstic two color lid with rubber sealing ring.
-Size:180 X 149.8 X 1мм
-weight:PP25.8g+TPE7.4g
-Material:PP

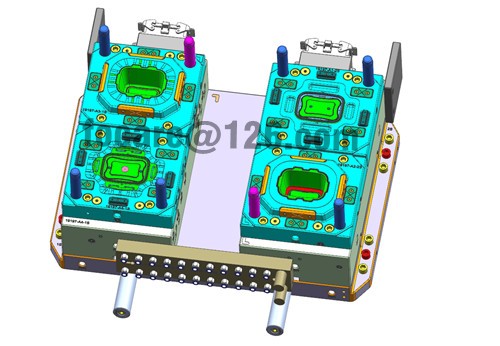

Two color airtight container mold with rubber sealed lid
-Mould steel:H13 with hardness 46-50HRC
-Mould cavity:1+1+1+1cav
-Hot runner systerm:6tips air vent gate
-Mould size:900 X 620 X 585мм
-Mould weight:1726кg
-Injection molding machine for testing two color airtight container mold with rubber sealed lid:260тон two color injection molding machine

Focare mould is one of word's leading Two color mold manufacturer.We have been continuously researching and improving the two color mould structure,so that our customers can received hight-quality Two color mold with competitive price.
