Plastic mold for snow brush handle and ice scraper

Product information

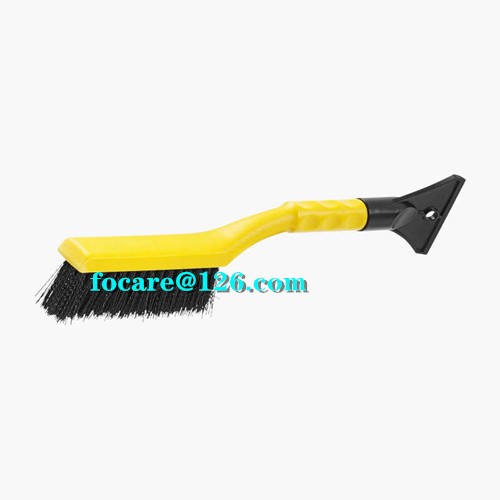

1.Snow brush handle
-Size:377.6 X 34.4 X 34.1mm
-Weight: 119g
-Material:PP
2.Ice scraper
-Size:88.2 X 95.8 X 27.7mm
-Weight:31g
-Material:ABS

Mold information

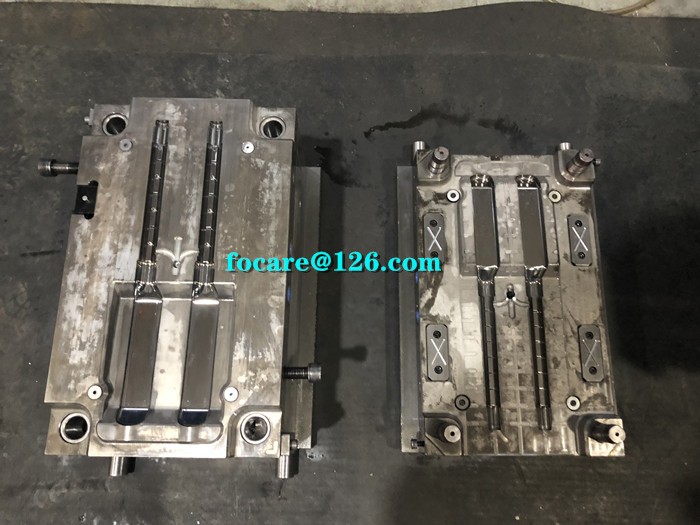

1.Snow brush handle mold

-Mould cavity:2cav

-Mould steel :718H with hardness 32-35HRC
-Gate type:cold runner system
-Mould size:320 X 450 X 300mm
-Mould weight:220кg
-Suitable injection machine:160ton

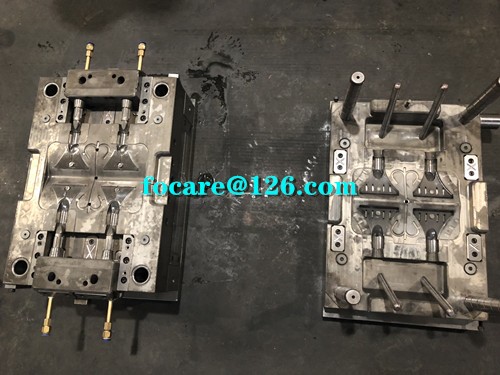

2.Ice scraper mold

-Mould cavity:4cav
-Mould steel :718H with hardness 32-35HRC
-Gate type:cold runner system
-Mould size:550 X 350 X 289mm
-Mould weight:348кg
-Suitable injection machine:250ton

If you are interested in plastic snow bush mold and ice scraper mold design,mold making or mold testing,just send email to me.
