Two component child oxygen mask mould|Two color paediatric medium concentration oxygen mask mould|Rotary platen injection molding for plastic two non-PVC material venturi mask

As we know,Intersurgical paediatric oxgen mask with two non-pvc material has high requirements in plastic material,product surface,and other unique design.Therefore,it was also a great challenge for us to make the two material plastic oxygen mask mold,but we done it,and the mold that met the customer's requirements completly and won the customer's high praise,then he also ordered several two component adult and pardiatric medium concentration oxygen mask mold and venturi mask mold.

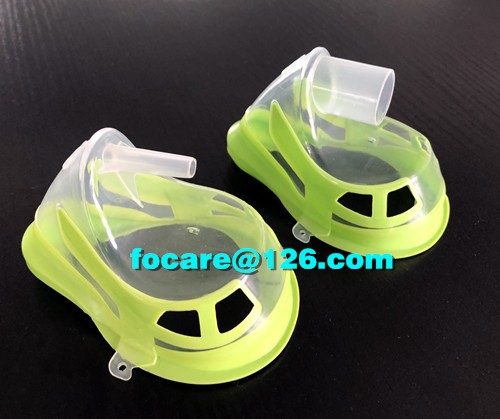

Features of two non-PVC material paediatric oxygen mask

• Soft chin, nose and side seals ensure exceptional levels of patient comfort.
• Lighter than PVC masks, more comfortable for the patient.
• Incurved nose seal eliminates the need for a separate nose clip, designed to prevent oxygen and aerosolised drugs entering the patient’s eyes.
• MRI compatible.
• Lower environmental impact.

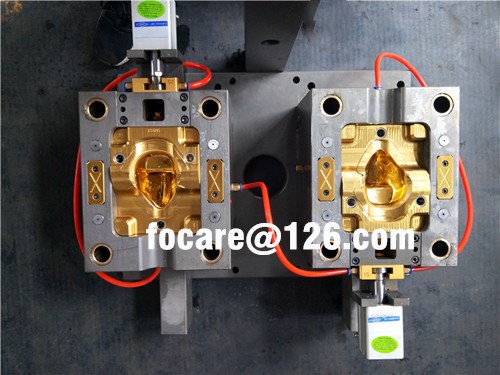

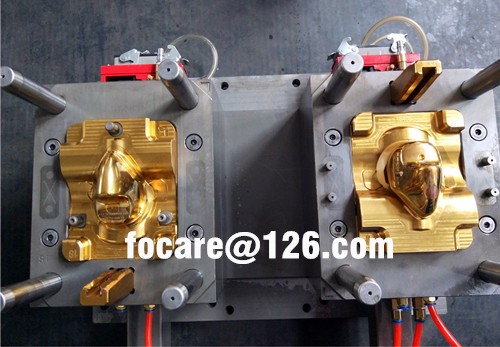

Two component paediatric plastic oxygen mask mold information

-Mould steel:STAVAX 420
-Mould cavity:2+2cav.
-Hot runner systerm for two color oxygen mask mold:4tips YUDO hot runner point gate
-Mould size :900 X 500 X 551mm
-Mould weight:1202kg
-Injection molding machine for testing two component oxygen mask mold:280tonFCS two color injection machine

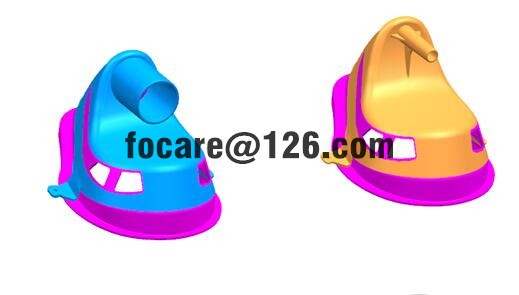

Two component child oxygen mask mould design,two component rotary platen mould design for plastic two non-PVC material venturi mask

1.4 tips piont gate

2.Perfect cooling systerm to short mold cycle time.

Focare mould-China two component oxygen mask mould maker,two color medical mold manufacturer,we can made all types plastic oxygen mask with two non-PVC material,such as adult medium concentration mask,two color child plastic oxygen mask mold,intersurgical paediatric oxygen mask mold,two color venturi mask and double color plastic respirator face mask.

Two component plastic oxygen mask rotery mould,bi injection molding ,pls click follow link:

https://www.youtube.com/watch?v=vb-c-XzM8Tc
