Double color plastic medical oxygen mask mold|Two color plastic medium concentration mask mold|Two component plastic venturi mask mold

Focare mould-Professional two color plastic mold maker,two color plastic medical mold making facotory,China double color plastic medical oxygen mask mold maker,we can customize mold for your special plastic medical oxygen masks,adult,paediatric intersurgical medium concentration oxygen masks, ,we can do any double color plastic medicdal oxygen masks mold design to meet your requirments ,we have our own patented technology for making high required plastic plastic medical oxygen mold.Pls check below information of one plastic medical oxygen mask mold we made.

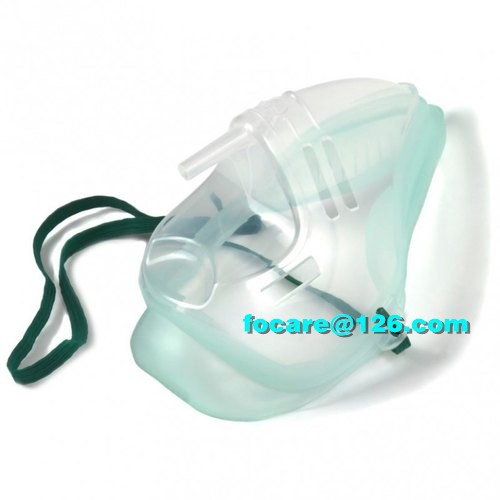

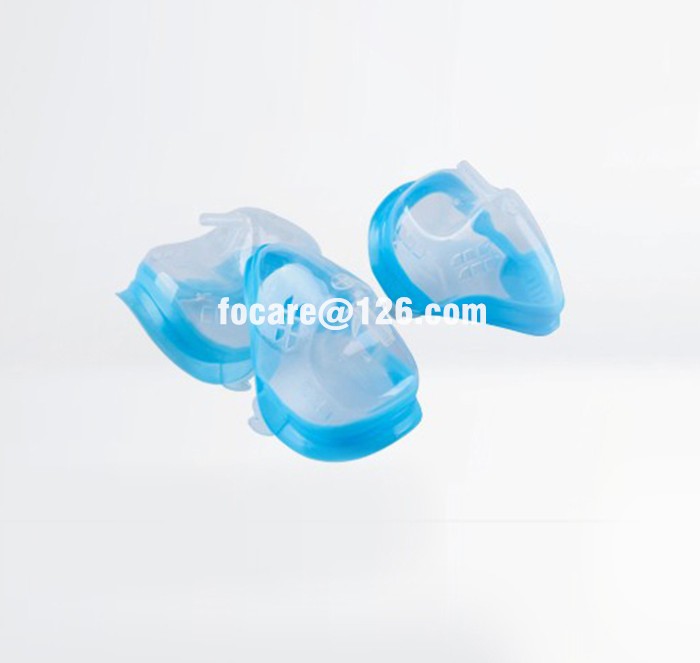

Basic information of Adult  intersurgical medical oxygen mask with two material

-Size:103X 81 X 111мм

-weight:13g

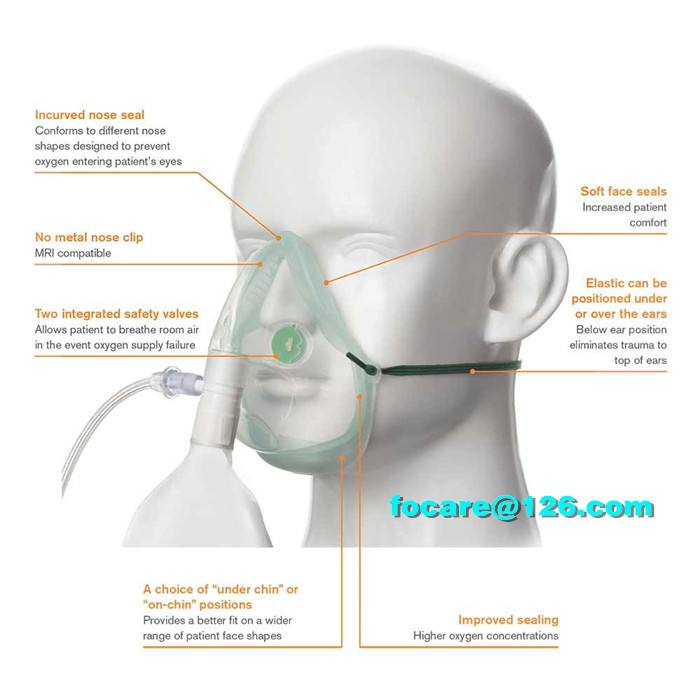

Special features of adult enongated medium concentration plas oxygen mask

-Elongated design is suitable for long term use
-Soft,clear and light weight provides easy connection to oxygen source
-combine two non-PVC materials in the same mask.
-softer material is utilised in the manufacture of the seal, which is in contact with the patient's face.

How can we make a good and quality plastic oxygen mask mold with these special features of masks?

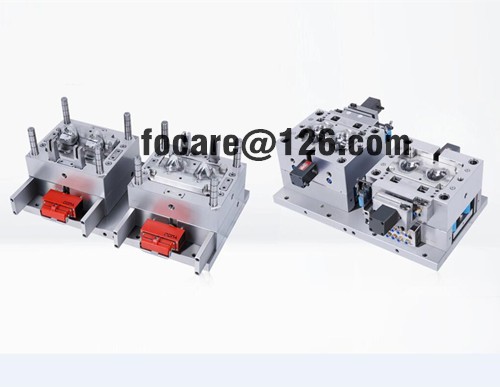

Basic infomation of adult  plastic medical medium concentration oxygen mask mold informations

-Mould steel: DIN1.2316
-Mould Cavity:2+2cav.
-8tips valve gate
-Mould size :890 X 490 X 566mm
-Mould weight:1235kg

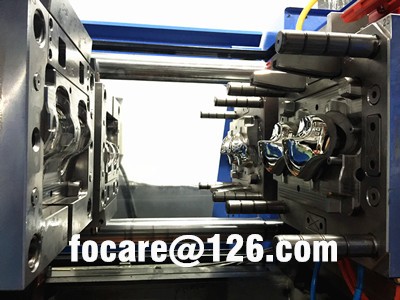

-Injection molding machine:280ton two color injection machine

Features of plastic mask mold

1.Choose the suitable steel
Material of medical mask usually is medical standard,and it very clean,soft ans environmentally,so we need to use high stainless steel with high polished performance, such as DIN1.2316,H136 with hardness 48-52HRC.
2.Make a rational design for double color medical oxygen mask mold.
-Make the right gate location
-Make a good cooling systerm to reduce the cycle time .
-Make a good ejection systerm,there are should be no eject pin mark on the surface of the oxygen mask.
3.The mould must be machined with high precision tooling to ensure that there is no flash and parting line on the surface of the product.

What dose double color medical oxygen mask mold injection? Pls clik follow link.

https://www.youtube.com/watch?v=vb-c-XzM8Tc

If you are still looking for high quality double color plastic medical oxygen mask mold maker,who can provide you adult paediatric medium concentration mask mold.venturi mask mold welcome to visit our company and looking forward to future cooperation.
