Two component toothbrush mold

Basic information for two component toothbrush and two component toothbrush mold

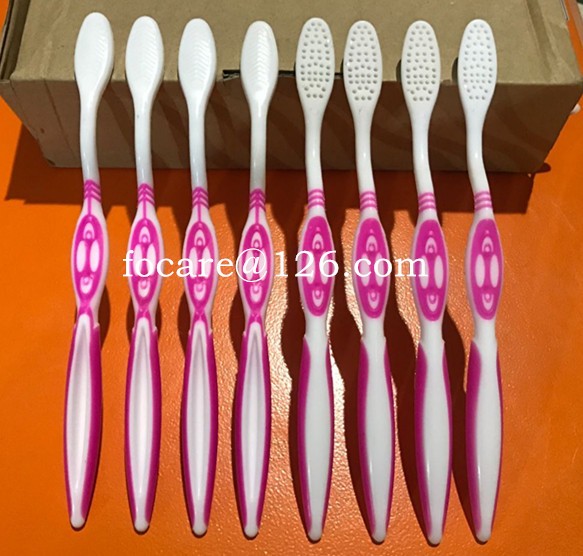

1.Two component toothbrush

Product size :14 X 189 X 21мм

2.Two component toothbrush mold

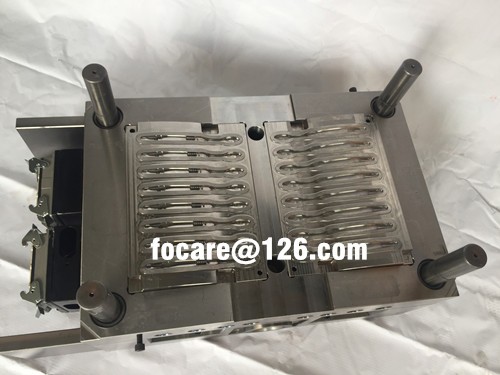

-8+8cav two component toothbrush mold
-Mould steel:S136 with hardness 48-52HRC
-Hot runner systerm:16-tips piont hot runner

-Mould size:450 X 660 X 540мм
-Mould weight:1073kg
-Bi injection moulding machine for testing two component toothbrush rotary mold:150ton

Two component toothbrush mold design,Two component toothbrush mold with rotary type design.

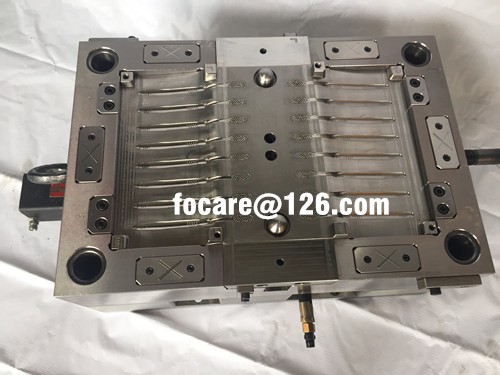

1.Injection system with 16tips piont gate

2.Ejection system of two component toothbrush mold

3.Two component toothbrush mold with axis rotary design

Focare Mould-China two component toothbrush mold maker,Two color toothbrush mold expert,two shot toothbrush injection mold manufacturer,bi color toothbrush mold making factory,if you intrested in multi color mold,multi shot mold,welcome to send email to me .

Test video of two component toothbrush injection mold,click below link

https://youtu.be/DLCk2hrJJuw
